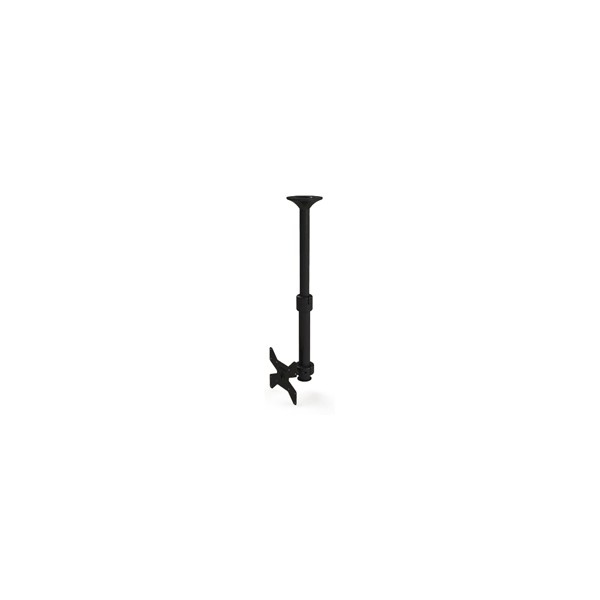

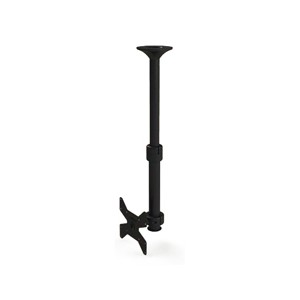

The Telehook TH-1040-CTL Medium Weight Display Ceiling Pole allows the attachment of a small to medium sized LED, LCD or Plasma television to a ceiling. It is supplied with a removable mounting head to enable easy installation and maintenance. The mounting head features an integrated ball-joint which provides an adjustable viewing angle with tilt, pan and orientation (landscape / portrait) control. The product ships with a single display head that can be upgraded with an optional accessory to hold two screens in a back to back configuration.

The TH-1040-CTL ships with a telescopic pole (Long length), a mounting plate that affixes directly to the ceiling, and a mounting bracket that attaches to the screen using hardware included in the pack.  Cabling can be run up through the pole into a cavity area or allowed to exit at the ceiling. During installation the viewing angle can be adjusted with rotation around the pole. The removable head allows the display to be easily lifted and clicked into place with facility for installation of a security screw (provided) to prevent unauthorized removal.

This product supports TVs with a standard VESA mounting hole pattern (refer specs below) and is designed for attachment to a flat timber or cement surface. An optional adaptor is available for raked ceilings with angles up to 45º.  Set-up is simple and once installed you’re guaranteed a professional finish with a dress cover to hide the ceiling connection and a clean pole without screw holes.

Flexible mounting:

• Designed for screens 17" (43.2cm) or larger
• Supports 1 (or optionally 2) displays, each weighing up to 25kg (55lbs)
• Available in two lengths, each with telescopic adjustment  (900-1800mm)
• An optional 1m (39") extension pole is available separately
• Ships with a cover plate to hide ceiling mounting points
• Features integrated cable management with dual cable exit points
• Designed for flat ceilings with optional raked ceiling support

Enhanced viewing adjustment:

• Donut style mounting with tension adjustment
• Allows +/-20º pan and tilt with user adjustment
• Allows 360º screen rotation with user adjustment
• Allows 360º rotation around the pole with position set during installation

Detachable display head:

• Quick-Attachment mechanism enables easy display mounting and replacement
• Security screw provides enhanced theft resistance

Easy to Install:

• Designed for user installation
• Supports displays with standard VESA mounting hole configurations (WxH mm)75x75, 100x100, 200x100, 200x200
• Also supports displays with VESA configurations 200x300; 200x400; 300x200; 300x300; 300x300; 300x400; 400x200; 400x300 & 400x400 via an optional adaptor
• Shipped with installation guide and mounting hardware for cement and timber stud attachment

Durable Design:

• Steel and aluminium construction with toughened matt powdercoat finish
• 10 year warranty
