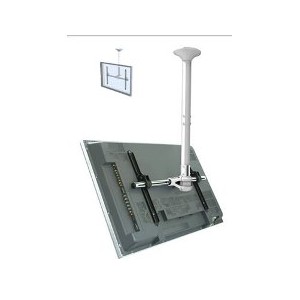

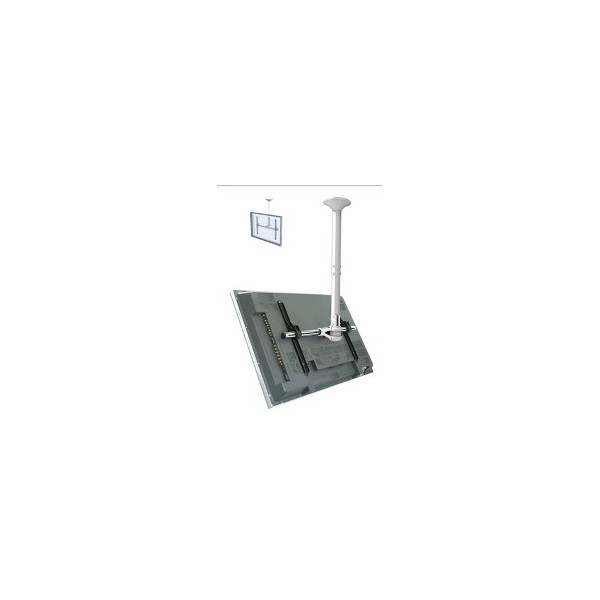

Telehook Tilt Ceiling Mount White LCD/Plasma mount system
Supports 1 (or optionally 2) displays with a maximum weight of 91kg (200lbs) per screen
Height adjustable to suit drop lengths from 220mm to 2000mm (8.6-78.75")
Integrated cable management with dual 40mm cable exit points for flexible installation
Can be locked to the pole for enhanced security in public areas (lock not included)
The Telehook Large Display Ceiling mount is an extreamly strong and stylish solution for attaching a medium to heavy weight LCD, LED or Plasma television to a ceiling. Designed for commercial and home applications it features a high quality finish and enhanced security. The telescopic pole can be configured to suit a large range of height situations and features advanced internal cable management for easy installation. The removable (lockable) display brackets support a wide range of screen sizes with tilt and levelling adjustment.
The TH-3070-CTW ships with a mounting plate that affixes to the ceiling and brackets that attach to the display. Cabling can be run up through the pole into a cavity area or exited at the ceiling with a cover to ensure a neat installed finish. The display is lifted and secured in place with option for free or fixed rotation. The mount can be used with TVs and electronic signage that have either VESA or non-standard mounting hole patterns and is suitable for attachment to either timber or cement ceiling structures. It can be upgraded with an optional accessory that allows attachment of a second screen in a back to back configuration.
Flexible mounting:
Enhanced adjustment:
Detachable display brackets:
Easy to Install:
Durable Design:
