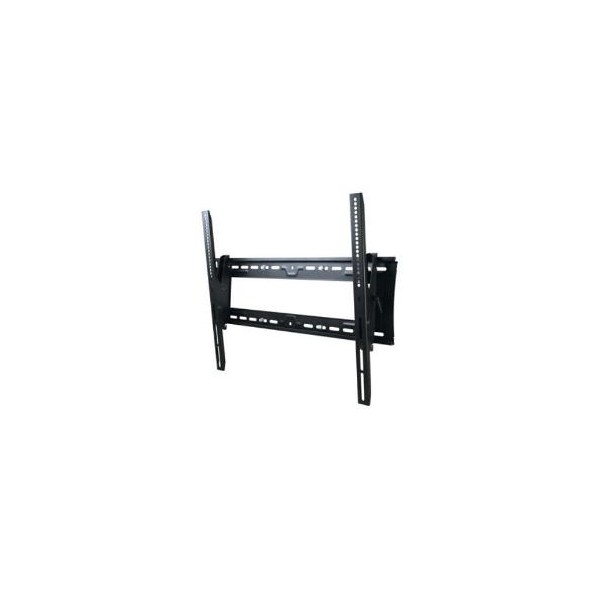

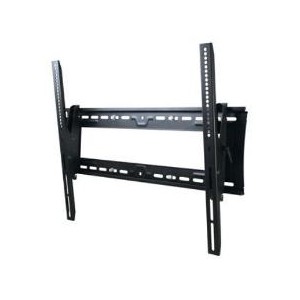

The Telehook Universal Heavy Weight Tilt Mount is a flexible, strong and durable solution for attaching large and/or heavy screens to a wall with for tilt and horizontal position adjustment. Suitable for home and commercial applications, it incorporates a lockable security bar to prevent display removal.

The TH-3070-UT ships with a mounting plate that affixesto the wall while brackets attach to the display using screws included in the pack. After cabling the display is simply lifted and slotted into place. Both the wall plate and brackets incorporate slotted holes for easy alignment and universal mounting compatibility.

Designed for very large / maximum weight screens:

• Designed for displays 32" or larger
• Supports screens weighing up to 91kgs (200lbs)
• Display sits 72.5mm  (2.75”) from wall when flat

Detachable display brackets:

• Provides for easy set-up and cabling
• Allows for horizontal position adjustment
• Allows for +15º / -5º tilt adjustment
• Incorporates a lockable security bar (padlock not included)

Easy to Install:

• Designed for user installation
• Slotted mounting holes for easy alignment
• Universal mounting hole compatibility 180-800mm W to 125-500mm H (7-31.5" x 5-19.7")
• Shipped with installation guide and mounting hardware for masonry, timber stud and plasterboard attachment

Durable Design:

• Quality steel construction with a toughened matt powdercoat finish
• 10 year warranty
