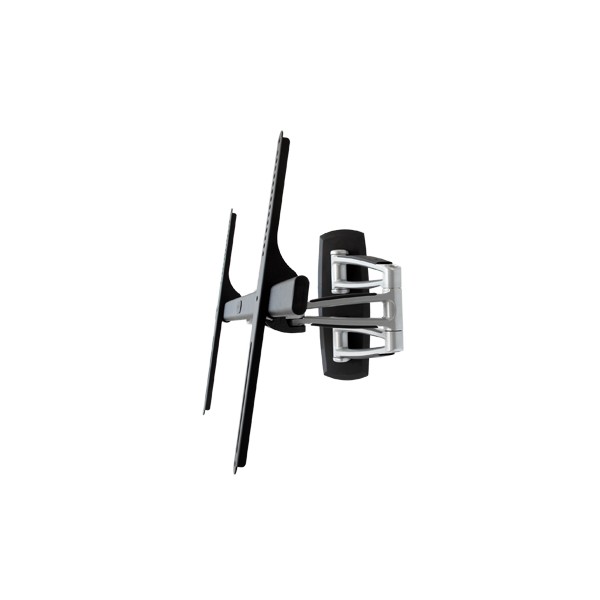

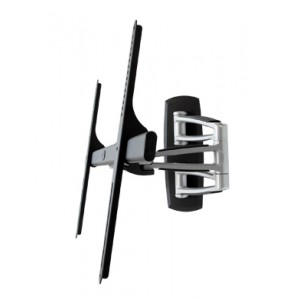

The TH-3270-UFM combines cutting edge, sleek design with the capacity to hold a display 65kg (143lbs) in weight out from the wall. Full motion capability comes from three pivot points that give you complete control over tilt, pan, swing, pull out and pivot. Such superior control with minimal effort is thanks to Telehook’s Smooth Glide technology and spring assisted tilting mechanisms. These innovative features support the full weight of your screen during adjustment, allowing one person to easily set the screen position for maximum viewing comfort. The die cast aluminum arm can extend out to 635mm (25”) from the wall and the universal mounting hole pattern ensures this mount is compatible with a vast range of TVs. It comes pre- assembled, with a design that guarantees quick and easy installation. The display can be mounted in either portrait or landscape mode

Colour: silver with black

Full Motion mounting:

• Designed for screens 32" (81.3cm) or larger
• Supports displays weighing up to 65kg (143lbs)
• Adjustable wall extension from 155mm (6.1") to 635mm (25")
• Features hidden mounting points for public area installation and integrated cable management

Enhanced viewing adjustment:

• Articulated arm with three pivot points & Smooth Glide™ movement
• Allows full pan adjustment with 180º at the wall, 360º at the articulation and 180º at the display head
• The display head allows +20º/-10º tilt adjustment with load assisted operation

Detachable display head:

• Enables easy installation and maintenance
• Supports installation of the display in either a landscape or portrait orientation
• Allows +/-5º horizontal rotation for display levelling
• Ships with a screw which secures the screen and helps prevent unauthorised removal

Easy to Install:

• Designed for user installation
• Universal mounting hole compatibility 150-805mm W x 140-500mm H (6-32" x 5.5-19.5")
• Shipped with installation guide and mounting hardware for masonry wall & timber stud attachment

Durable Design:

• Die cast aluminium construction with steel base plate & display bracket
• Load assistance is achieved through springs rather than gas struts for extended durability & reliability
• 10 year warranty
