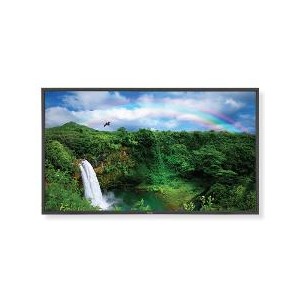

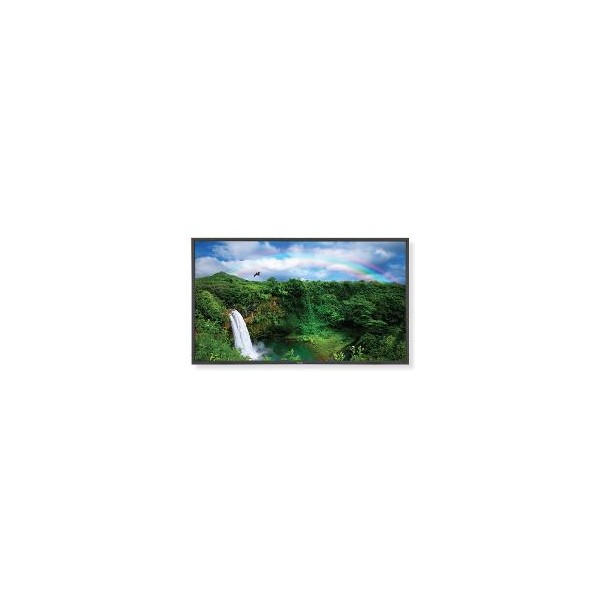

NEC P402 40" Commercial LCD

NEC P402 40" Commercial LCD

Introducing our next generation NEC P Series displays.

The new 40” NEC P402 professional-grade, large-screen LCD display offers industrial-strength, 24/7 operation for the most demanding digital signage installations. Meeting the requirements for rugged use, P Series displays offer full high-definition resolution for smooth video and crisp imagery.

More details

Introducing our next generation NEC P Series displays.

The new 40” NEC P402 professional-grade, large-screen LCD display offers industrial-strength, 24/7 operation for the most demanding digital signage installations. Meeting the requirements for rugged use, P Series displays offer full high-definition resolution for smooth video and crisp imagery.


Their advanced connectivity with digital loop-through and Open Pluggable Specification (OPS) support via the built-in expansion slot enable you to easily connect components to run your digital signage. With TileMatrix™ technology, you can build a video wall up to 100 displays to maximize impact with your audience, while monitoring your network from a remote location with the most advanced control and communication options available. The P402 is ideal in quick-service restaurants, airports, public information environments, healthcare facilities and retail stores.


At a glance:

  • Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allows for 24/7 operation
  • Open Pluggable Specification is the industry's first standardized option slot that simplifies digital signage installations
  • Built-in expansion slot allows for seamless integration of NEC/third-party components, as well as future OPS-based products
  • Expanded connectivity with digital loop-through
  • Full 1080p high-definition resolution provides stunning detail
  • Improved mechanical design with slimmer depth
  • TileMatrix allows you to create video walls up to 10 x 10



Display

  • Panel Technology: SPVA (P-DID)
  • Viewable Image Size: 40
  • Native Resolution: 1920 x 1080
  • Pixel Pitch: 0.46
  • Pixels Per Inch: 55
  • Brightness (typical): 500
  • Contrast Ratio (typical): 3000:1
  • Viewing Angle: 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
  • Response Time(Gray to Gray): 8
  • Refresh Rate: 60Hz
  • Aspect Ratio: 16:9
  • Active Screen Area: 34.9 x 19.6 in. / 885.6 x 498.2mm
  • Orientation: Landscape/Portrait
  • Displayable Colors: More than 16.7 million

SYNCHRONISATION RANGE

  • Horizontal (Analog/Digital): 31.5-91.1 kHz
  • Vertical: 50-85 Hz

INPUT SIGNAL

  • Video: Analog RGB 0.7 Vp-p/75 Ohms
  • Sync: Separate sync: TTL Level (Positive/Negative) Composite sync: TTL Level (Positive/Negative)
  • Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

CONNECTIVITY

  • Supported Video Formats: 720 x 400, 640 x 480, 800 x 600, 832 x 624, 1024 x 768, 1280 x 1024, 1600 x 1200, 1280 x 768, 1360 x 768, 1920 x 1080
  • PC Signal Compatibility: Yes
  • Macintosh Compatibility: Yes

Input Terminals

  • Digital: DisplayPort, HDMI, DVI-D
  • Analog: VGA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD or Video), S-Video, BNC Composite
  • Audio: RCA Audio, Stereo Mini-Jack (2), HDMI Audio, DisplayPort Audio
  • External Control: RS-232C, LAN, IR Remote, DDC/CI

Output Terminals

  • Analog:BNC Composite
  • Audio:Stereo Mini-Jack, External Speaker Jack (2)
  • Digital: DisplayPort, HDMI, DVI-D
  • External Control: RS-232C, IR Remote

POWER CONSUMPTION (Typical)

  • On: 145
  • ECO Mode Standby: <1W

PHYSICAL SPECIFICATIONS

  • Bezel Width (Left/Right, Top/Bottom): 0.61 in./0.61 in., 0.61 in./0.61 in. ; 15.5mm/15.5mm, 15.5mm/15.5mm

Dimensions (WxHxD)

  • Net (with stand): 36.2 x 22.4 x 13 in. / 919.7 x 567.7 x 330mm
  • Net (without stand): 36.2 x 21.0 x 4.1 in. / 919.7 x 532.2 x 103mm
  • Shipping: 42 x 26.9 x 10.3 in. / 1066.0 x 682.0 x 261mm

Weight

  • Net (with stand): 50.3 lbs. / 22.8 kg
  • Net (without stand): 45.9 lbs. / 20.8 kg
  • Shipping: 59.5 lbs. / 27 kg

VESA HOLE CONFIGURATION SPECIFICATION

  • 300 x 300mm (4-hole)

ENVIRONMENTAL CONDITIONS

  • Operating Temperature: 41-104°F / 5-40°C
  • Operating Humidity: 20-80%
  • Operating Altitude: 9843 ft. / 3000m
  • Storage Temperature: -4-140°F / -20-60°C
  • Storage Humidity: 10-90%
  • Storage Altitude: 40,000 ft. / 12,192m

LIMITED WARRANTY (parts & labor, including backlight)

  • 3 Years

ADDITIONAL FEATURES

  • Advanced thermal capabilities
  • Advanced cooling system
  • Sealed panel design
  • Expansion slot
  • Thin bezel
  • TileMatrix (10x10)
  • TileComp
  • Separate group/Monitor ID function
  • CableComp+
  • Ethernet Control and Communication
  • RS-232 Control and Communication
  • Landscape/portrait capable
  • Carbon footprint meter
  • AccuBlend
  • Plug and Play (DDC/CI, DDC2B)
  • Scheduler (w/ real-time clock)
  • Sharpness/softness adjustment
  • Screen saver function
  • Ambient light sensor (AmbiBright)
  • 6-axis color adjustment
  • Metal rear cabinet
  • POP
  • Side-by-Side
  • Kensington lock
  • 10-bit gamma
  • Handles
  • Touch- and protective screen-ready
  • Variable picture modes
  • Advanced video settings (Noise Reduction, Adaptive Contrast)
  • Input labeling
  • Backlight adjust
  • Aspect ratio control
  • Built-in speakers
  • OPS/Expansion slot
