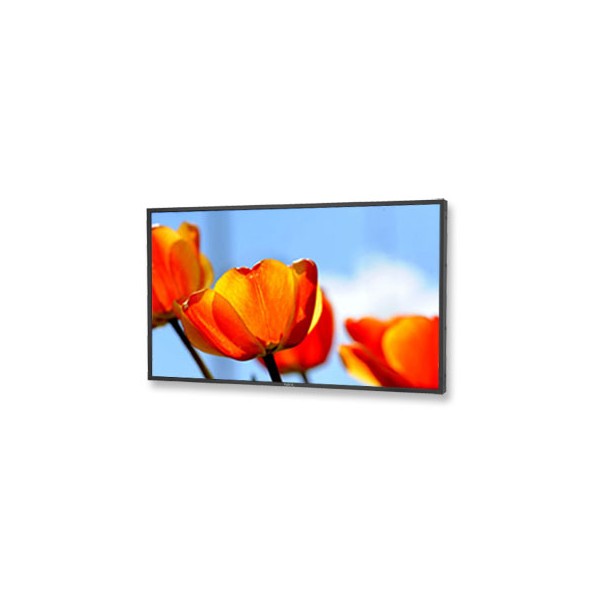

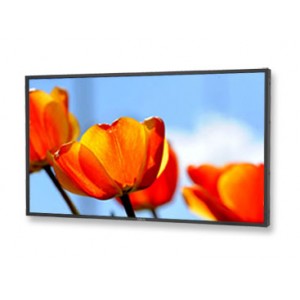

The MultiSync P462 follows the tradition of NEC’s professional public display line.

The 24/7 proof screen is equipped with a rich and unparalleled feature set, completed by an abundance of interfaces no other product on the market can match. The MultiSync P462 is a Reference Public Display, ideal for reliability, connectivity,  flexibility and user friendliness.

Designed for a wide array of applications such as retail signage including 24/7, transport applications, control room applications, conference rooms, lobby / reception installations and integration in totems and furniture, the MultiSync P462 offers flexible installation combined with industry leading performance.

At a glance:

• Programmable Ambient Light Sensor - for reduced power consumption and eye pleasing brightness levels.
• DICOM support - for medical applications.
• Functionality - can be extended with additional interfaces and playback devices through the option slot which avoid additional cables and mounting brackets.
• Special Characteristics - Advanced fan control; Copy display settings through RS232; DICOM support; Hardware colour calibration possible; Input name adjustment; Matrix memory; OSD rotation for portrait mode; PIN as theft protection; Various picture in picture options; Programmable ambient light sensor; Rapid input switching; Scheduler; Screen saver functions; TileMatrix(10 x 10); User input priority definition

DISPLAY

• Panel Technology: S-PVA with CCFL backlights
• Active Screen Area (W x H) [mm]: 1,018 x 573
• Aspect Ratio: 16:9
• Brightness (shipping) [cd/m²]: 500, (700 max)
• Contrast Ratio (typ.): 3500:1
• Viewing Angle [°]: 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
• Response Time (typ.) [ms]: 8 (grey-to-grey)
• Panel Refresh Rate [Hz]: 60

SYNCHRONISATION RANGE

• Horizontal Frequency [kHz]: 31.5 - 91.1 (analog and digital)
• Vertical Frequency [Hz]: 25.2 - 85

RESOLUTION

• Native Resolution: 1920 x 1080 at 60 Hz
• Supported on digital and analogue inputs PC: 1024 x 768; 1280 x 1024; 1280 x 720; 1280 x 768; 1280 x 800; 1280 x 960; 1366 x 786; 1400 x 1050; 1600 x 1200; 1680 x 1050; 1920 x 1080; 640 x 480; 720 x 400; 720 x 576; 800 x 600
• Supported on digital inputs (Video): 1280 x 720p (50)16:9 ; 1280 x 720p (59.94/60)16:9 ; 1920 x 1080i (50)16:9 ; 1920 x 1080i (59.94/60)16:9 ; 1920 x 1080p (23.97/24)16:9 ; 1920 x 1080p (25)16:9 ; 1920 x 1080p (29.97/30)16:9 ; 1920 x 1080p (50)16:9 ; 1920 x 1080p (59.94/60)16:9 ; 720 x 480p (59.94/60)16:9 ; 720 x 576p (50)16:9

CONNECTIVITY

• Input Video Analogue: 1 x D-sub 15 pin; 1 x S-Video; Composite (RCA); RGBHV for PC and Component/Composite (BNC)
• Input Video Digital: 1 x DVI-D (with HDCP); 1 x HDMI 1.3 (with HDCP); 1 x DisplayPort (with HDCP)
• Input Audio Digital: 2 x Cinch (RCA); 1 x 3,5 mm jack
• Input Control: LAN 100Mbit; RS232; remote control wire (3,5mm jack)
• Output Video Analogue: Composite (RCA)
• Output Video Digital: 1 x DVI-D (with HDCP); 1 x DisplayPort (with HDCP)
• Output Audio Analogue: 3,5mm jack
• Output Control: RS232; remote control wire (3,5mm jack)
• Option Slot technology: Dual Slot (STv1 + STv2); STv2 (compatible with Intel / NEC OPS standard)
• Remote Control: LAN with SNMP ; RS-232C (9-pin D-sub) Input and Output; Remote Control IR (internal/external (optional) sensor)

ELECTRICAL

• Power Consumption on Mode [W]: 155 shipping; 315 (max.)
• Power Savings Mode [W]: < 0.5 (ECO Standby); < 1
• Power Management: VESA DPMS

ENVIRONMENTAL CONDITIONS

• Operating Temperature [°C]: +5 to +40
• Operating Humidity [%]: 20 to 80
• Storage Humidity [%]: 10 to 90
• Storage Temperature [°C]: -20 to +60

MECHANICAL

• Dimensions (W x H x D) [mm]: Without stand: 1,055.4 x 608.6 x 103
• Weight [kg]: Without stand: 23.8
• Bezel Width [mm]: 16.5 (left and right); 16.5 (top and bottom)
• VESA Mounting [mm]: 300 x 300 (FDMI); 4 holes; M6

AVAILABLE OPTIONS

• Option Slot: Built-in PC; CAT 5 receiver; DVBT-Tuner; DVI daisy chain board; HD-SDI board; Media Player
• Accessories: Feet (ST-4620); Protection Glass (P462 PG); Speaker (SP-4046PV); Wall mount (WM32-70 L/P); Wall mount (WMS 32-55 L/P)

ADDITIONAL FEATURES

• Colour Versions: Black Front Bezel, Black Back Cabinet
• Safety and Ergonomics: CE; TÜV GS; C-tick; Energy Star 5.1; FCC Class B; UL/C-UL or CSA; CCC; PSB; VCCI; RoHS
• Audio: Integrated Speakers (10 W + 10 W); Optional Speakers (15 W + 15 W)

SHIPPING CONTENT

• Display; Power Cable; VGA cable; interface cover; Remote Control; CD-ROM (User Guides/Manuals)

WARRANTY

• 3 years warranty incl. backlight
