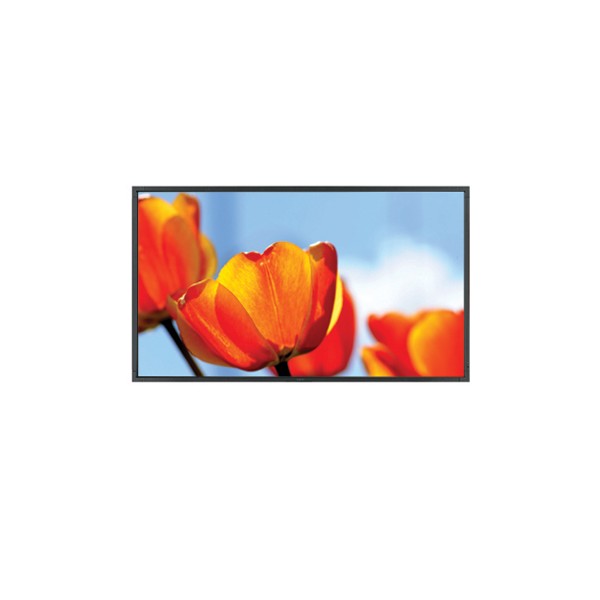

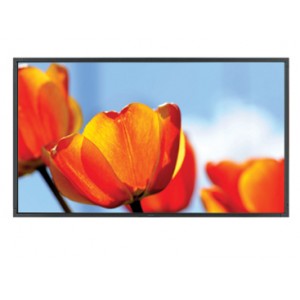

Display your messaging in superior full HD with the 55" NEC P551, a professional-grade LCD display ideal for even the most demanding digital signage applications. Boasting an industrial-strength design, 120Hz refresh rate for amazingly crisp image and text views, the broadest connectivity, widest display control and the Enhanced Digital Signage Technology Suite, which touts more than 30 advanced features, this display delivers stunning visual impact for environments such as quick-service restaurants, airports, healthcare and retail.

At a glance:

• 1920 x 1080 full high-definition image with up to 700 cd/m2 brightness and 3000:1 contrast ratio
• 120 Hz refresh rate reduces typical blur seen in fast-moving images and text
• premium-grade panel with additional thermal protection
• TileMatrix allows you to create video walls (up to 10x10 displays) with enhanced setup features
• built-in expansion slot allows for seamless integration of future third-party components
• broad range of inputs, including DVI, VGA, component, composite, HDMI and DisplayPort
• ethernet and RS-232 Control and Communication
• enhanced Digital Signage Technology Suite with more than 30 advanced features.

Display

• Viewable Image Size: 55"
• Pixel Pitch: 0.63mm
• Pixels Per Inch: 40 @ native resolution
• Brightness: 500 cd/m2 (typ); 700 cd/m2 (max)
• Contrast Ratio: 3000:1
• Viewing Angle:  89º/89º/89º/89º
• Response Time:  8ms (gray to gray)

Synchronization Range

• Horizontal: 31.5 to 91.1 KHz
• Vertical: 50-85Hz
• Input Signal
• Video: ANALOG RGB 0.7 Vp-p/75 Ohms
• Sync: Separate: TTL Level (Pos/Neg); Composite Sync; Composite Sync on Green
• Input Connectors: Display Port, HDMI, DVI-D, 15pin Dsub, 5 BNC (RGBHV, DVD/HD, or Composite Video) Composite (RCA/BNC), RCA Component, S-Video, RS232C, Ethernet, IR
• Native Resolution: 1920x1080

Power Consumption

• On: 280 typ
• Power Savings Mode: <1W

Dimensions (WxHxD)

• Net (with stand): 49.2 x 29.8 x 15.75 in. / 1250 x 757 x 400mm
• Net (without stand): 49.2 x 28.4 x 5.8 in. / 1250 x 721 x 150mm
• Net Weight (with stand): 93 lbs / 42.2 kg
• Net Weight (without stand): 88.2 lbs. / 40 kg
• VESA Hole Configuration Specifications: 400 x 400mm (4 hole)

Environmental Conditions

• Operating Temperature: 5-40º C / 41-104º F
• Operating Humidity: 20-80%
• Operating Altitude : 9,842.51 ft / 3,000 m
• Storage Temperature: -20-60º C / -4-104º F
• Storage Humidity: 10-90%
• Storage Altitude: 12,142 m/40,000 ft.

Warranty

• 3 years parts and labour, including backlight

Additional Features

120Hz refresh rate, Thin bezel, advanced thermal capabilities, sealed professional panel, expansion slot, Ethernet Control and Communication, CableComp+, TileMatrix (10x10), TileComp, programmable lookup tables, Plug and Play (DDC/CI, DDC2B), PIP (remote), POP, 6-axis color adjustment, multi-level programmable zoom, video ready, scheduler (w/ RTC), sharpness/softness, off-timer (countdown), screen saver, vacation switch, 10-bit gamma, AutoBright (signal input), Windows Vista-certified, portrait-capable, metal rear cabinet, handles, touch- and protective screen-ready, ambient light sensor, carbon footprint meter, color temperature adjustment (2600-10,000K)
