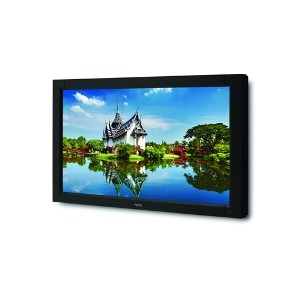

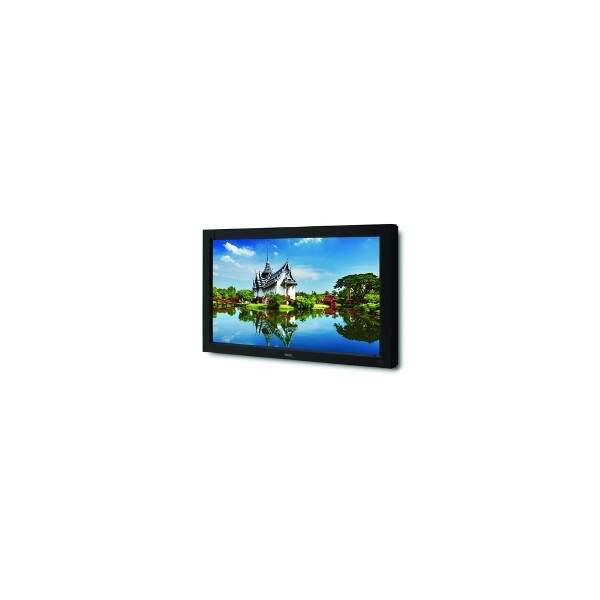

Go digital with your messaging using the 32" NEC V321, value series, large-screen LCD display that provides a cost-conscious solution for digital signage applications. This model features a public display-grade panel that protects against permanent image retention, and a full selection of inputs, which allows you to connect to a wide range of peripheral devices.

The high-performance panel and an abundance of advanced technologies that promote extended use, along with an adaptable cabinet design, make the V321 ideal for retail and restaurant markets, as well as indoor venues, training facilities and corporate boardrooms.

At a glance:

• commercial-grade design extends the display's use for various applications
• wide range of inputs, including DVI, VGA, shared 5-BNC, S-Video and HDMI
• TileMatrix™ allows you to create video walls up to 5x5
• high brightness (450 cd/m2 brightness) and contrast ratio (3000:1) help create eye-catching images and crisp, easy-to-read text
• text ticker creates a dedicated portion of the screen for applications such as news updates and emergency warnings
• protective-glass and touch-panel-ready design provides opportunities for module protection and interactivity
• landscape and portrait orientations allow for flexible content placement, maximizing audience awareness.

Panel Technology: S-PVA

Active Screen Area (W x H) [mm]: 697.7 x 392.3

Screen Size [inch/cm]: 31.5 / 80

Pixel Pitch [mm]: 0.511 x 0.511

Viewing Angle [°]: 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)

Contrast Ratio (typ.): 3000:01:00

Brightness (typ.) [cd/m²]: 450

Response Time (typ.) [ms]: 8 (grey-to-grey)

Colours [Mio.]: 16.77

Horizontal Frequency [kHz]: 31.5 - 91.1 (analog and digital)

Vertical Frequency [Hz]: 50 - 85

Optimum Resolution: 1366 x 768 at 60 Hz

Native Resolution: 1366 x 768 at 60 Hz

Supported Resolutions: 1366 x 768; 832 x 624; 800 x 600; 720 x 400; 640 x 480

Video Input: Analog: Component (BNC); Composite (BNC); RGBHV (BNC); 1 x D-sub 15 pin; 1 x S-Video Digital: 1 x DVI-D (with HDCP); 1 x HDMI

Video Output: Analog: 1 x D-sub 15 pin; 1 x BNC composite out

Audio Input: (2 x Cinch (RCA); 1 x Head-jack 3.5 mm

Audio Output: 1 x Cinch (RCA); 1 x amplified speaker signal

Plug & Play: VESA DDC2B

Safety and Ergonomics: C-tick; CCC; CE; ERP; Energy Star 5.0; FCC Class B; PSB; RoHS ; TÜV GS; UL/C-UL or CSA; VCCI

Power Consumption on Mode [W]: 75 (typ.); 125 (max.)

Stand-by Mode [W]: < 2

Power Management: VESA DPMS

Power Supply: internal power supply; 100-120 V/220-240 V; 1.4 A/0.6 A

Ambient Humidity (operating) [%]: 20 to 80

Ambient Temperature (operating) [°C]: Operation Temperature: +5 to +40 Landscape +5 to +35 Portrait

VESA Mounting [mm]: 400 x 200 (FDMI); 12 holes / 100 mm spacing

Dimensions (W x H x D) [mm]: Without stand: 789 x 476.3 x 133

Bezel Width [mm]: 44.2 (left and right); 40.5 (top and bottom)

Weight [kg]: Without stand: 14.3

Benefits: NaViSet®and NaViSet®Administrator compatible; Overheating Protection with Controllable Fans; protective glass ready; temperature sensors readable via OSD

Supported TV Standards (no tuner): NTSC; PAL; SECAM

Video Modes (no tuner): 480i; 480p; 576i; 576p; 2 x720p (50 and 60 Hz); 2 x 1080i (50 and 60 Hz)

Audio Functions: Optional Speakers (7 W + 7 W)

Remote Control: D-sub 15 and DVI-D (DDC/CI); LAN; RS-232C (9-pin D-sub) Input and Output; Remote Control IR

Colour Versions: Black Front Bezel, Black Back Cabinet

Shipping Content: Signal Cable VGA - VGA CD-ROM (User Guides/Manuals); Display; Power Cable; Remote Control (IR)

Wall Mounts: Optional: VP-F80

Stand: Optional

Warranty: 3 years warranty incl. backlight
