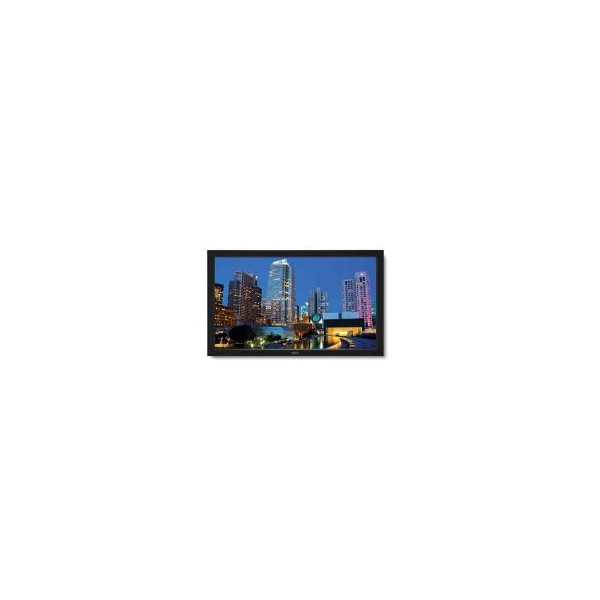

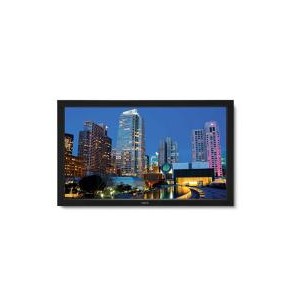

NEC’s V422 commercial-grade large-screen LCD display

offers digital signage users a cost-effective solution. V Series displays are ideal for use in applications that require extended use, including retail and restaurant markets, or locations that include indoor venues, training facilities and corporate boardrooms. The V422 features a built-in expansion slot that allows for seamless integration of NEC accessories, third-party components and Open Pluggable Specification (OPS) products. It offers built-in 10W speakers, a public display-grade panel to protect against permanent image retention and a full selection of inputs, including digital loop-through.

At a glance:

• Full 1080p high-definition resolution provides stunning detail
• Commercial-grade LCD panel and components
• Expanded connectivity with digital loop-through
• Built-in expansion slot supports the Open Pluggable Specification (OPS), which is the industry’s first standardization option slot that simplifies digital signage installations
• Built-in, low-profile 10W speakers enhance the experience with superior sound
• Improved mechanical design with slimmer depth
• TileMatrix™ allows you to create video walls up to 10 x 10

DISPLAY

• Panel Technology: S-IPS
• Viewable Image Size: 42
• Native Resolution: 1920 x 1080
• Pixel Pitch: 0.48
• Pixels Per Inch: 52
• Brightness (typical): 370
• Contrast Ratio (typical): 1300:1
• Viewing Angle: 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
• Response Time(Gray to Gray): 10
• Refresh Rate: 60Hz
• Aspect Ratio: 16:9
• Active Screen Area: 36.6 x 20.6 in. / 930.2 x 523.3mm
• Orientation: Landscape/Portrait
• Displayable Colors: More than 16.7 million

SYNCHRONISATION RANGE

• Horizontal (Analog/Digital): 31.5-91.1 kHz
• Vertical: 50-85 Hz

INPUT SIGNAL

• Video: Analog RGB 0.7 Vp-p/75 Ohms
• Sync: Separate sync: TTL Level (Positive/Negative)
• Composite sync: TTL Level (Positive/Negative)
• Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

CONNECTIVITY

• Supported Video Formats: 720 x 400, 640 x 480, 800 x 600, 832 x 624, 1024 x 768, 1280 x 1024, 1600 x 1200, 1280 x 768, 1360 x 768, 1920 x 1080
• PC Signal Compatibility: Yes
• Macintosh Compatibility: Yes

Input Terminals

• Digital: DisplayPort, HDMI, DVI-D
• Analog: VGA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD or Video), S-Video, BNC Composite
• Audio: RCA Audio, Stereo Mini-Jack (2), HDMI Audio, DisplayPort Audio
• External Control: RS-232C, Ethernet (RJ45), IR Remote, DDC/CI

Output Terminals

• Analog: DVI-D
• Audio: BNC Composite
• Digital: Stereo Mini-Jack, external Speakers Jack (2)
• External Control: RS-232C, IR Remote

POWER CONSUMPTION (typical)

• On: 155
• ECO Mode Standby: <2W

PHYSICAL SPECIFICATIONS

• Bezel Width (Left/Right, Top/Bottom): 1.73 in./1.73 in., 1.7 in./1.7 in. ; 44mm/44mm, 43mm/43mm

Dimensions (WxHxD)

• Net (with stand): 40.3 x 25.6 x 13 / 1022.9 x 651.2 x 330mm
• Net (without stand): 40.3 x 24.2 x 4.2 in. / 1022.9 x 613.5 x 105.6mm
• Shipping: 45.1 x 27.7 x 8.1 in. / 1142 x 703 x 206mm

Weight

• Net (with stand): 52.5 lbs. / 23.8 kg
• Net (without stand): 48.5 lbs. / 22 kg
• Shipping: 59.5 lbs. / 27 kg

VESA HOLE CONFIGURATION SPECIFICATION

• 300 x 300mm (4-hole)

ENVIRONMENTAL CONDITIONS

• Operating Temperature: 41-104°F / 5-40°C
• Operating Humidity: 20-80%
• Operating Altitude: 9843 ft. / 3000m
• Storage Temperature: -4-140°F / -20-60°C
• Storage Humidity: 10-90%
• Storage Altitude: 40,000 ft. / 12,192m

LIMITED WARRANTY (parts & labor, including backlight)

• 3 Years

ADDITIONAL FEATURES

• Advanced cooling system
• Sealed panel design
• Expansion slot
• TileMatrix (10x10)
• TileComp
• Separate group/Monitor ID function
• CableComp+
• Ethernet Control and Communication
• RS-232 Control and Communication
• Landscape/portrait capable
• Carbon footprint meter
• AccuBlend
• Plug and Play (DDC/CI, DDC2B)
• Scheduler (w/ real-time clock)
• Sharpness/softness adjustment
• Screen saver function
• 6-axis color adjustment
• POP
• Side-by-Side
• Kensington lock
• 10-bit gamma
• Touch- and protective screen-ready
• Variable picture modes
• Advanced video settings (Noise Reduction, Adaptive Contrast)
• Input labeling
• Backlight adjust
• Customer Detect Function
• Built-in speakers
• OPS/Expansion slot
