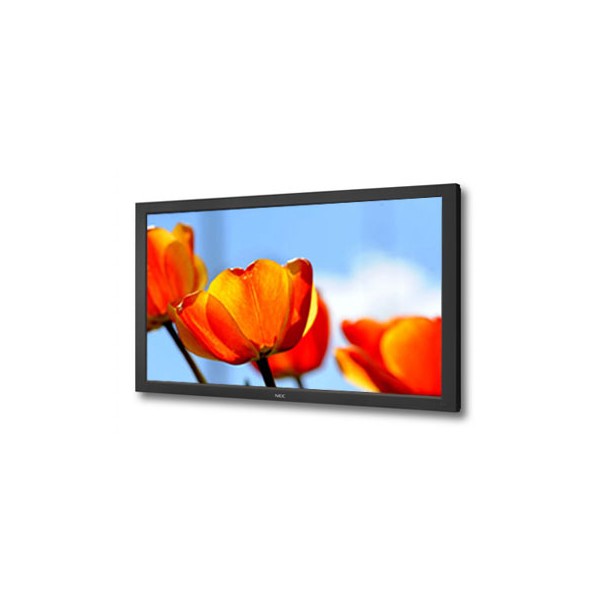

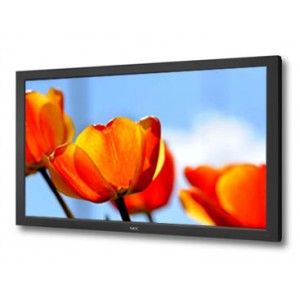

NEC V462 46" Commercial LCD

NEC V462 46" Commercial LCD

NEC’s V462 commercial-grade large-screen LCD display

offers digital signage users the biggest bang for their buck with full-HD resolution at a cost-conscious price. This model features a built-in expansion slot that allows for seamless integration of NEC accessories, third-party components and Open Pluggable Specification (OPS) products. Built-in 10W speakers enable a superior sound experience

More details

NEC’s V462 commercial-grade large-screen LCD display

offers digital signage users the biggest bang for their buck with full-HD resolution at a cost-conscious price. This model features a built-in expansion slot that allows for seamless integration of NEC accessories, third-party components and Open Pluggable Specification (OPS) products. Built-in 10W speakers enable a superior sound experience and a public display-grade panel protects against permanent image retention.

A full selection of inputs, including digital loop-through, allows you to connect to a wide range of peripheral devices. The V462 display is ideal for use in applications that require extended use, including retail and restaurant markets, or locations that include indoor venues, training facilities and corporate boardrooms.

At a glance:

  • Commercial-grade LCD panel and components
  • Expanded connectivity with digital loop-through
  • Open Pluggable Specification is the industry's first standardized option slot that simplifies digital signage installations
  • Built-in expansion slot allows for seamless integration of NEC/third-party components, as well as future OPS-based products
  • Improved mechanical design with slimmer depth
  • Built-in, low-profile 10W speakers enhance the experience with superior sound



DISPLAY

  • Panel Technology: SPVA (B-DID)
  • Viewable Image Size: 46
  • Native Resolution: 1920 x 1080
  • Pixel Pitch: 0.53
  • Pixels Per Inch: 48
  • Brightness (typical): 340
  • Contrast Ratio (typical): 3000:1
  • Viewing Angle: 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
  • Response Time(Gray to Gray): 8
  • Refresh Rate: 60Hz
  • Aspect Ratio: 16:9
  • Active Screen Area: 40.1 x 22.6 in. / 1018.1 x 572.9mm
  • Orientation: Landscape/Portrait
  • Displayable Colors: More than 16.7 million

SYNCHRONISATION RANGE

  • Horizontal (Analog/Digital): 31.5-91.1 kHz
  • Vertical: 50-85 Hz

INPUT SIGNAL

  • Video: Analog RGB 0.7 Vp-p/75 Ohms
  • Sync:Separate sync: TTL Level (Positive/Negative)
  • Composite sync: TTL Level (Positive/Negative) Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

CONNECTIVITY

  • Supported Video Formats: 720 x 400, 640 x 480, 800 x 600, 832 x 624, 1024 x 768, 1280 x 1024, 1600 x 1200, 1280 x 768, 1360 x 768, 1920 x 1080
  • PC Signal Compatibility: Yes
  • Macintosh Compatibility: Yes

Input Terminals

  • Digital: DisplayPort, HDMI, DVI-D
  • Analog: VGA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD or Video), S-Video, BNC Composite
  • Audio: RCA Audio, Stereo Mini-Jack (2), HDMI Audio, DisplayPort Audio
  • External Control:RS-232C, Ethernet (RJ45), IR Remote, DDC/CI

Output:Terminals

  • Analog: BNC Composite
  • Audio: Stereo Mini-Jack, External Speaker Jack (2)
  • Digital: DVI-D
  • External Control: RS-232C, IR Remote

POWER CONSUMPTION (typical)

  • On: 165
  • ECO Mode Standby: <1W

PHYSICAL SPECIFICATIONS

  • Bezel Width (Left/Right, Top/Bottom): 2 in./2 in., 1.8 in./1.8 in. ; 51mm/51mm, 46mm/46mm

Dimensions (WxHxD)

  • Net (with stand): 44.2 x 27.7 x 13.8 in. / 1121.5 x 702.8 x 351 mm
  • Net (without stand): 44.2 x 26.2 x 4.2 in. / 1121.5 x 664.7 x 107mm
  • Shipping: 50.3 x 30.7 x 9.9 in. / 1278 x 779 x 252 mm

Weight

  • Net (with stand): 59.7 lbs. / 27.1 kg
  • Net (without stand): 55.8 lbs. / 25.3 kg
  • Shipping: 68.6 lbs. / 31.2 kg

VESA HOLE CONFIGURATION SPECIFICATION

  • 300 x 300mm (4-hole)

ENVIRONMENTAL CONDITIONS

  • Operating Temperature: 41-104°F / 5-40°C
  • Operating Humidity: 20-80%
  • Operating Altitude: 9843 ft. / 3000m
  • Storage Temperature: -4-140°F / -20-60°C
  • Storage Humidity: 10-90%
  • Storage Altitude: 40,000 ft. / 12,192m

LIMITED WARRANTY (parts & labor, including backlight)

  • 3 Years

ADDITIONAL FEATURES

  • Advanced cooling system
  • Sealed panel design
  • Expansion slot
  • TileMatrix (10x10)
  • TileComp
  • Separate group/Monitor ID function
  • CableComp+
  • Ethernet Control and Communication
  • RS-232 Control and Communication
  • Landscape/portrait capable
  • Carbon footprint meter
  • AccuBlend
  • Plug and Play (DDC/CI, DDC2B)
  • Scheduler (w/ real-time clock)
  • Sharpness/softness adjustment
  • Screen saver function
  • 6-axis color adjustment
  • POP
  • Side-by-Side
  • Kensington lock
  • 10-bit gamma
  • Touch- and protective screen-ready
  • Variable picture modes
  • Advanced video settings (Noise Reduction, Adaptive Contrast)
  • Input labeling
  • Backlight adjust
  • Built-in speakers
  • OPS/Expansion slot
