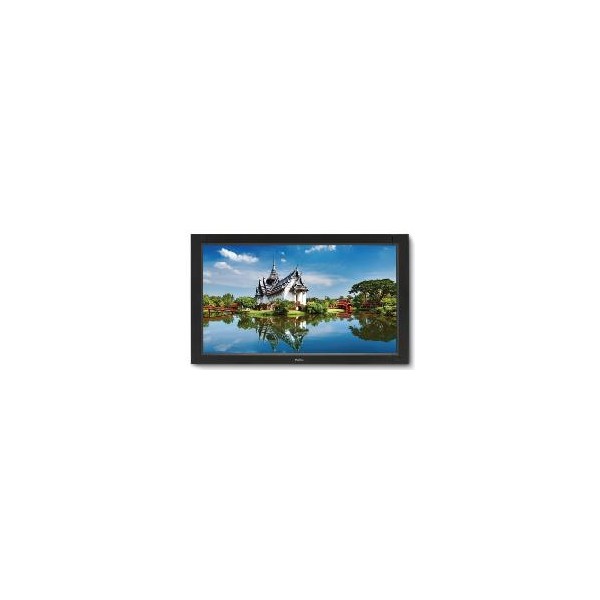

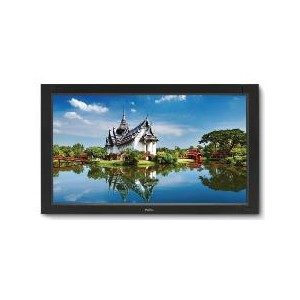

NEC’s V651 commercial-grade large-screen display offers digital signage users the biggest bang for their buck with a full-HD, 65” display at a cost-conscious price.

This model features built-in 10W speakers, a public display grade panel that protects against permanent image retention and a full selection of inputs, which allows you to connect to a wide range of peripheral devices.

The high performance panel and an abundance of advanced technologies that promote extended use make the V651 ideal for retail and restaurant markets, indoor venues, training facilities and corporate boardrooms.

At a glance:

• Full 1080p high definition resolution provides stunning detail
• Commercial-grade LCD panel and components
• Expanded connectivity with digital loop through
• Built-in expansion slot allows for seamless integration of NEC/third-party components, as well as future OPS-based products
• Built-in, low-profile 10W speakers enhance the experience with superior sound
• TileMatrix™ allows you create video walls up 10 x10
• Ethernet and RS-232 Control and Communication allows for ease in remote monitoring.

Display

Panel Technology: A-MVA
Viewable Image Size: 65
Native Resolution: 1920 x 1080
Pixel Pitch: 0.74
Pixels Per Inch: 33
Brightness (typical): 400
Contrast Ratio (typical): 5000:1
Viewing Angle: 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Response Time(Gray to Gray): 8
Refresh Rate: 60Hz
Aspect Ratio: 16:9
Active Screen Area: 56.2 x 31.6 in. / 1428.5 x 803.5mm
Orientation: Landscape
Displayable Colors: More than 16.7 million

Synchronization Range

Horizontal (Analog/Digital): 31.5-91.1 kHz
Vertical: 50-85 Hz

Input Signal

Video: Analog RGB 0.7 Vp-p/75 Ohms
Sync: Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

Connectivity

Supported Video Formats: 720 x 400, 640 x 480, 800 x 600, 832 x 624, 1024 x 768, 1280 x 1024, 1600 x 1200, 1280 x 768, 1360 x 768, 1920 x 1080
PC Signal Compatibility: Yes
Macintosh Compatibility: Yes

Input Terminals

Digital: DisplayPort, HDMI, DVI-D
Analog: VGA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD or Video), BNC Composite, S-Video
Audio: RCA Audio (2), Stereo Mini-Jack
External Control: RS-232C, Ethernet (RJ45), DDC/CI

Output Terminals

Analog: BNC Composite
Audio: RCA Audio, External Speaker Jack (2)
Digital: DVI-D
External Control: RS-232C

Power Consumption (typical)

On: 330
ECO Mode Standby: <2W

Physical Specifications

Bezel Width (Left/Right, Top/Bottom): 2.1 in./2.1 in., 2 in./2 in. ; 53mm/53mm, 51mm/51mm

Dimensions (WxHxD)
Net (with stand): 60.6 x 37.2 x 20.2 in. / 1540.4 x 944.7 x 512mm
Net (without stand): 60.6 x 35.8 x 4.7 in. / 1540.4 x 909.2 x 118.9mm
Shipping: 71.5 x 46.9 x 14.8 in. / 1816 x 1192 x 375mm

Weight

Net (with stand): 125 lbs. / 56.7 kg
Net (without stand): 118.6 lbs. / 53.8 kg
Shipping: 147.7 lbs. / 67 kg

VESA Hole Configuration Specifications

400 x 400mm (4-hole)

Environmental Conditions

Operating Temperature: 41-104°F / 5-40°C
Operating Humidity: 20-80%
Operating Altitude: 9843 ft. / 3000m
Storage Temperature: 4-140°F / -20-60°C
Storage Humidity: 10-90%
Storage Altitude: 40,000 ft. / 12,192m

Warranty

Limited Warranty (parts & labor, including backlight)
3 years

Additional Features

Advanced thermal capabilities
Advanced cooling system
Sealed panel design
TileMatrix (10x10)
TileComp
Separate group/Monitor ID function
CableComp+
Ethernet Control and Communication
RS-232 Control and Communication
Carbon footprint meter
Plug and Play (DDC/CI, DDC2B)
Scheduler (w/ real-time clock)
Sharpness/softness adjustment
Screen saver function
6-axis color adjustment
POP
Side-by-Side
Kensington lock
Handles
Touch- and protective screen-ready
Variable picture modes
Advanced video settings (Noise Reduction, Adaptive Contrast)
Input labeling
Backlight adjust
Aspect ratio control
Built-in speakers
10-bit color over HDMI
OPS/Expansion slot
