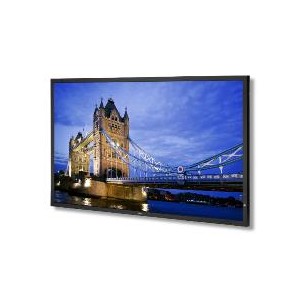

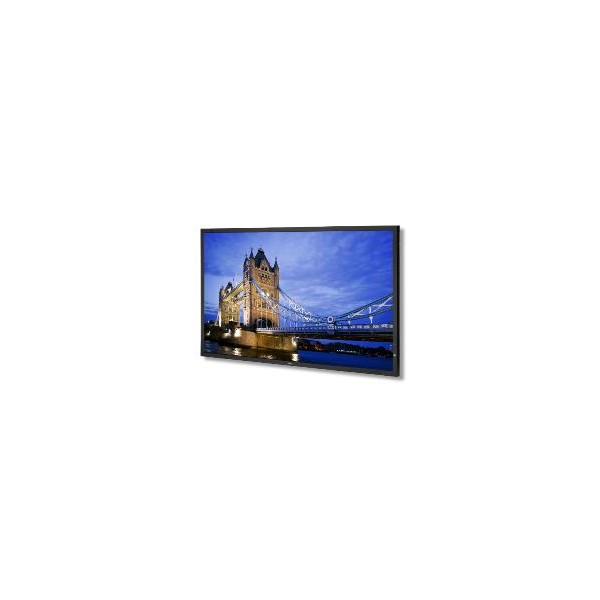

Operating digital signage has never been easier than with the 46" NEC X461S. This super-slim full HD LCD display offers LED backlighting technology to deliver high-quality imagery at a lower power consumption than its peers. The industry's first standardized input, the Open Pluggable Specification (OPS) slot, increases flexibility for users in any digital signage application, including video walls where the X461S can be implemented into configurations up to 10x10. Enhanced connectivity comes in the form of DisplayPort, HDMI and an expansion slot for NEC accessories or third-party components.

At a glance:

• Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allows for 24/7 operation.
• Built in, standardized expansion slot allows for seamless integration of NEC/third-party components, simplifying installations.
• LED-backlighting technology improves power consumption and allows for a slimmer cabinet depth
  TileMatrix™ allows you to create video walls up to 10 x 10.
• Real-time clock has the ability to set schedules for on/off times 24/7 and can be set to warm up 30 minutes before use for optimum color representation.

Display

• Panel Technology: S-PVA with edge LED backlights
• Active Screen Area (W x H) [mm]: 1,018 x 572
• Screen Size [inch/cm]: 46 / 117
• Aspect Ratio: 16:9
• Brightness (shipping) [cd/m²]: 500, (600 max)
• Contrast Ratio (typical): 3000 : 1
• Viewing Angle: 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
• Response Time (typ.) [ms]: 8 (grey to grey)
• Panel Refresh Rate [Hz]: 60

Synchronisation Range

• Horizontal Frequency [kHz]: 31.5-91.1
• Horizontal Frequency [kHz]: 50-85

Resolution

• Native Resolution: 1920 x 1080 at 60 Hz
• Supported on digital and analogue inputs (PC): 1024 x 768; 1280 x 1024; 1280 x 720; 1280 x 768; 1280 x 800; 1280 x 960; 1366 x 768; 1400 x 1050; 1600 x 1200; 1680 x 1050; 1920 x 1080; 640 x 480; 720 x 400; 720 x 576; 800 x 600
• Supported on digital inputs (Video): 1280 x 720p (50)16:9 ; 1280 x 720p (59.94/60)16:9 ; 1920 x 1080i (50)16:9 ; 1920 x 1080i (59.94/60)16:9 ; 1920 x 1080p (23.97/24)16:9 ; 1920 x 1080p (25)16:9 ; 1920 x 1080p (29.97/30)16:9 ; 1920 x 1080p (50)16:9 ; 1920 x 1080p (59.94/60)16:9 ; 720 x 480p (59.94/60)16:9 ; 720 x 576p (50)16:9

Connectivity

• Input Video Analogue: 1 x D-sub 15 pin; 1 x S-Video; Composite (BNC)
• Input Video Digital: 1 x DVI-D (with HDCP); 1 x HDMI (with HDCP); 1 x DisplayPort (with HDCP)
• Input Audio Analogue: 1 x 3,5 mm jack
• Input Audio Digital: DisplayPort, 1 x HDMI
• Input Control: LAN 100Mbit; RS232
• Output Video Digital: 1 x DVI-D (with HDCP)
• Output Audio Analogue: 3,5mm jack
• Output Control: RS232
• Option Slot Technology: STv2 (compatible with Intel / NEC OPS standard)
• Remote Control: LAN with SNMP ; RS-232C (9-pin D-sub) Input and Output; Remote Control IR (internal/external (optional) sensor)

Electrical

• Power Consumption on Mode (W): 135 shipping; 230 (max.)
• Power Savings Mode (W): < 0.5 (ECO Standby); < 1
• Power Management: VESA DPMS

Environmental Conditions

• Operating Temperature [°C]: +5 to +40
• Operating Humidity [%]: 20 to 80
• Storage Humidity [%]: 10 to 90
• Storage Temperature [°C]: -20 to +60

Mechanical

• Dimensions (W x H x D): Without stand: 1,062.7 x 618.1 x 43.3
• Weight (kg): Without stand: 18.9
• Bezel Width [mm]: 21 (left and right); 21 (top and bottom)
• VESA Mounting (mm): 300 x 300 (FDMI); 4 holes; M6

Environmental Conditions

• Operating Temperature: 41-95°F / 5-35°C
• Operating Humidity: 20-80%
• Operating Altitude: 9843 ft. / 3000m
• Storage termperature: -4-140°F / -20-60°C
• Storage Humidity: 10-90%
• Storage Altitude: 40,000 ft. / 12,192m

Available Options

• Option Slot: Built-in PC; HD-SDI board
• Accessories: Feet (ST-4020); Speaker (SP-RM1); Wall mount (WM32-70 L and P); Wall mount (WMS32-55 L and P)

Additional Features

• Colour Versions: Black Front Bezel, Black Back Cabinet
• Safety and Ergonomics: CE; TÜV GS; C-tick; Energy Star 5.1; FCC Class A; UL/C-UL or CSA; PSB; VCCI; RoHS
• Plug and Play: VESA DDC2Bi
• Audio: Integrated Speakers (5 W + 5 W); Optional speakers NEC SP-RM1 (2x15W)
