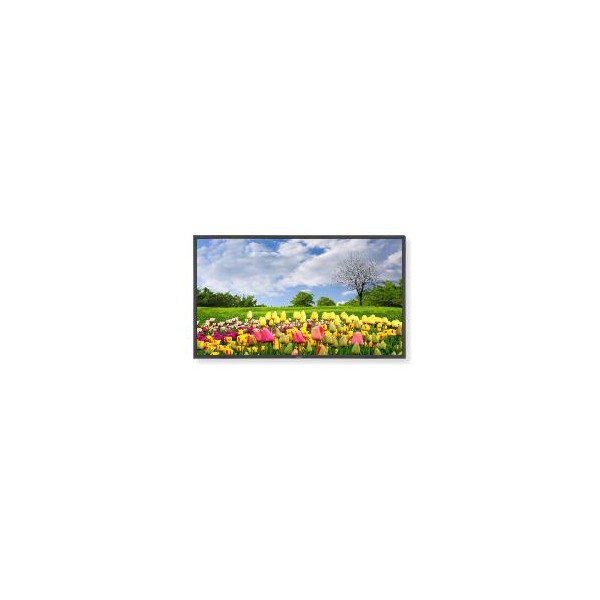

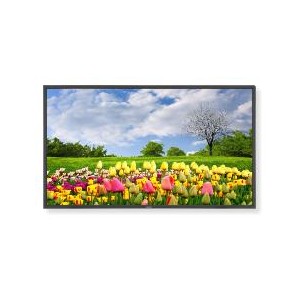

NEC X462HB 46" Commercial LCD

NEC X462HB 46" Commercial LCD

The 46” NEC X462HB shines a new light of performance on outdoor digital signage.

Drive-thru menu boards and video walls that are placed in heavily-lit environments. This model offers high brightness at 1200 cd/m², full HD resolution and quarter-lambda polarizing film, which enables outdoor viewing with polarized sunglasses in both landscape and portrait display orientations.

More details

The 46” NEC X462HB shines a new light of performance on outdoor digital signage

Drive-thru menu boards and video walls that are placed in heavily-lit environments. This model offers high brightness at 1200 cd/m², full HD resolution and quarter-lambda polarizing film, which enables outdoor viewing with polarized sunglasses in both landscape and portrait display orientations. Enhanced by 30+ advanced features of the Digital Signage Technology Suite, the X462HB boasts a 24/7 scheduler with real-time clock and sophisticated remote monitoring capabilities.

At a glance:

  • Quarter-lambda polarizing film allows viewing of content regardless of display orientation or the use of polarized sunglasses
  • Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self diagnostics and fan-based technology
  • Full 1080p high-definition resolution provides stunning detail
  • Built-in expansion slot allows for seamless integration of NEC/third-party components
  • Ethernet and RS-232 Control and Communication allows for ease in remote monitoring
  • Built-in ambient light sensor automatically adjusts the display’s brightness based on existing lighting conditions, reducing energy consumption
  • TileMatrix™ allows you to create video walls up to 10 x 10

Display

  • Panel Technology: SPVA (P-DID)
  • Viewable Image Size: 46
  • Native Resolution: 1920 x 1080
  • Pixel Pitch: 0.53
  • Pixels Per Inch: 47
  • Brightness (typical): 1200
  • Contrast Ratio (typical): 3500 : 1
  • Viewing Angle: 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
  • Response Time(Gray to Gray): 8
  • Refresh Rate: 60Hz
  • Aspect Ratio: 16:9
  • Active Screen Area: 40.1 x 22.5 in. / 1018.4 x 572.5mm
  • Orientation: Landscape/Portrait
  • Displayable Colors: More than 16.7 million

Synchronisation Range

  • Horizontal (Analog/Digital): 31.5-91.1 kHz
  • Vertical: 50-85 Hz

Input Signal

  • Video: Analog RGB 0.7 Vp-p/75 Ohms

Sync

  • Separate Sync: TTL Level (Positive/Negative)
  • Composite Sync: TTL Level (Positive/Negative)
  • Composite Sync on Green: (0.3Vp-p negative 0.7Vp-p positive)

Connectivity

  • Supported Video Formats: 720 x 400, 640 x 480, 800 x 600, 832 x 624, 1024 x 768, 1280 x 1024, 1600 x 1200, 1280 x 768, 1360 x 768, 1920 x 1080
  • PC Signal Compatibility: Yes
  • Macintosh Compatibility: Yes

Input Terminals

  • Digital: DisplayPort, HDMI, DVI-D
  • Analog: VGA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD or Video), RCA Composite, BNC Composite, RCA (Y, Cb/Pb, Cr/Pr) Component, S-Video
  • Audio: RCA Audio (2), Stereo Mini-Jack, HDMI Audio, DisplayPort Audio
  • External Control: RS-232C, Ethernet (RJ45), IR Remote, DDC/CI

Output Terminals

  • Analog: 5 BNC (RGBHV), BNC Composite
  • Audio: RCA Audio, External Speaker Jack (2)
  • External Control: RS-232C, IR Remote

Power  Consumption (typical)

  • On: 320
  • ECO Mode Standby: <0.5W

Physical Specifications

  • Bezel Width (Left/Right, Top/Bottom): 0.65in./0.65in., 0.65in./0.65in. ; 16.5mm/16.5mm,16.5mm/16.5mm
  • Net (with stand): 41.6W x 25.4H x 13.8D in. / 1055.4W x 644.1H x 351D mm
  • Net (without stand): 41.6W x 24H x 5.5D in. / 1055.4W x 608.6H x 140D mm
  • Shipping: 46.5W x 30.8H x 11.8D in. / 1180W x 782H x 300D mm
  • Net Weight (with stand): 72.5 lbs. / 32.9 kg
  • Net Weight (without stand): 68.3 lbs / 31.0 kg
  • Shipping: 83.8 lbs. / 38 kg
  • VESA Hole Configuration Specifications: 300 x 300 mm (4-hole)

Environmental Conditions

  • Operating Temperature: 41-95°F / 5-35°C
  • Operating Humidity: 20-80%
  • Operating Altitude: 9843 ft. / 3000m
  • Storage termperature: -4-140°F / -20-60°C
  • Storage Humidity: 10-90%
  • Storage Altitude: 40,000 ft. / 12,192m

Warranty

  • Limited 3 Years Warranty (parts & labour, including backlight)

Additional Features

  • High bright, Advanced thermal capabilities, Sealed panel design,  Expansion slot, Thin bezel, TileMatrix (10x10), TileComp, Separate group/Monitor ID function, CableComp+, Ethernet Control and Communication, RS-232 Control and Communication, Landscape/portrait capable, Carbon footprint meter, Plug and Play (DDC/CI, DDC2B), Scheduler (w/ real-time clock), Sharpness/softness adjustment, Screen saver function, Ambient light sensor (AmbiBright), Metal rear cabinet, POP, Side-by-Side, Kensington lock, Handles, Variable picture modes, Input labeling, Backlight adjust, Aspect ratio control, Quarter-lambda polarizing film
