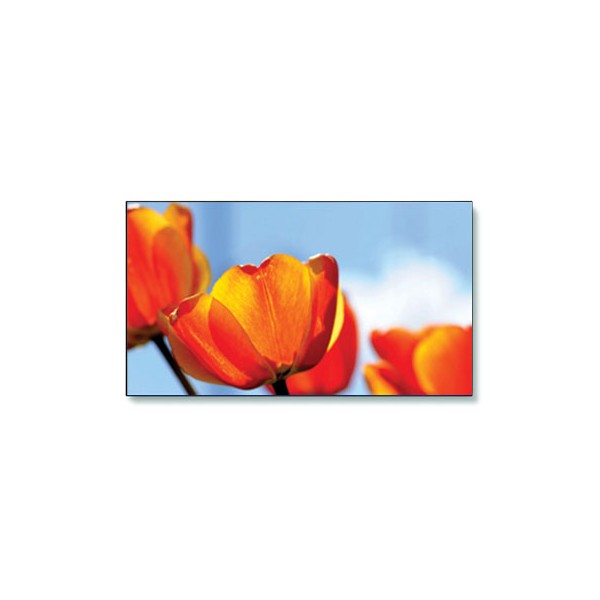

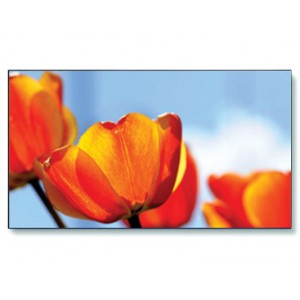

The 46" NEC MultiSync X462UN takes your LCD video walls to new levels of impact. Its ultra-narrow bezel allows for a screen-to-screen distance between two neighboring displays of only 7.3mm, a near 450% improvement from NEC’s previously revolutionary 33mm P Series displays. The display, which is ideal for digital signage and broadcast applications, can be deployed in video wall matrices of up to 10x10 (100 displays), creating a total surface area of approximately 645 sq ft. The barely discernable transition gap between displays, in addition to EdgeCompTM technology, ensures a homogenous picture across the matrix.

At a glance:

• EdgeCompTM technology provides for more even brightness distribution from center to edge during video wall configurations
• Adheres to Simple Network Management Protocol
• Professional-grade LCD panel and components
• 1366 x 768 WXGA native resolution in true 16:9 aspect ratio, maximum brightness of 700 cd/m2 and typical contrast ratio of 3000:1
• Ground-breaking ultra-narrow bezel of 7.3 millimeters (screen-to-screen)
• TileMatrixTM technology (up to 100 displays)
• Built-in expansion slot
• Optional Display Wall Calibrator
• Network Control and Communication

DISPLAY

• Panel Technology: S-PVA TFT
  Active Screen Area (W x H) [mm]: 1,018.4 x 572.5
  Screen Size [inch/cm]: 46 / 117
  Aspect Ratio: 16:9
  Pixel Pitch [mm]: 0.746 x 0.746
  Brightness (typ.) [cd/m²]: 500, (700 max)
  Contrast Ratio (typ.): 3000:1
  Viewing Angle [°]: 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
  Response Time (typ.) [ms]: 8 (grey-to-grey); 16 (6 white / black; 10 black / white); 8 (tr - tf)
  Colours [Mio.]: 16.77

SYNCHRONISATION RATE

• Horizontal Frequency [kHz]: 31.5 - 91.1 (analog and digital)
  Vertical Frequency [Hz]: 50 - 85

RESOLUTION

• Native Resolution: 1366 x 768 at 60 Hz
  Supported: 1024 x 768; 1280 x 1024; 1280 x 768; 1366 x 768; 1440 x 1050; 1600 x 1200; 1680 x 1050; 1920 x 1080; 640 x 480; 720 x 400; 800 x 600; 832 x 624

CONNECTIVITY

• Video Input: Analog: 1 x D-sub 15 pin; 1 x S-Video; 5 x BNC, Component, Composite (via BNC and Cinch)
  Digital: 1 x DVI-D (with HDCP); 1 x HDMI 1.3; 1 x DisplayPort
  Video Output: Analog: 5 x BNC, Composite (via BNC)
  Audio Input: (2 x Cinch (RCA); 1 x Head-jack 3.5 mm
  Audio Output: 1 x Cinch (RCA)
  Remote Control: RS-232C (9-pin D-sub) Input and Output; D-sub 15 and DVI-D (DDC/CI); Remote Control IR

TV AND VIDEO

• Supported TV Standards (no tuner): NTSC; PAL; SECAM
  Video Modes (no tuner): 480i; 480p; 576i; 576p; 2 x720p (50 and 60 Hz); 2 x 1080i (50 and 60 Hz); 2 x 1080p (50 and 60 Hz)

ELECTRICAL

• Power Consumption on Mode [W]: 200 (at 500 cd/m2) (typ.); 330W max. (with speakers and built-in PC 100% workload)
  Power Management: VESA DPMS
  Power Requirements: 100-120 V/220-240 V; 3.6 A/1.45 A; internal power supply

ENVIRONMENTAL CONDITIONS

• Operating Temperature [°C]: +5 to +40
  Operating Humidity [%]: 20 to 80

MECHANICAL

• Dimensions (W x H x D): [mm]With stand: 1,025.7 x 623.6 x 351; Without stand: 1,025.7 x 579.8 x 128.1
  Weight [kg]: With stand: 30.8; Without stand: 29
  Bezel Width [mm]: 2.4 bottom/right; (Content to content: 2.7 bottom/right; 4.6 top/left)
  VESA Mounting [mm]: 300 x 300 (FDMI); 4 holes
  Bezel Width [mm]: 4.3 top/left

AVAILABLE OPTIONS

• Option Slot: IPTV Tuner; Built-in PC; CAT 5 receiver; DVI daisy chain board; HD-SDI board; Media Player
  Stand: Optional
  Remote Control: Optional

ADDITIONAL FEATURES

• Colour Versions: Black Front Bezel, Black Back Cabinet
• Safety and Ergonomics: CE; TÜV GS; C-tick; Energy Star 5.0; FCC Class B; UL/C-UL or CSA; CCC; PSB; VCCI; RoHS
• Plug and Play: VESA DDC2Bi
• Audio: Amplifier: 2x 15 Watt; no optional speakers

WARRANTY

• 3 years warranty incl. backlight
