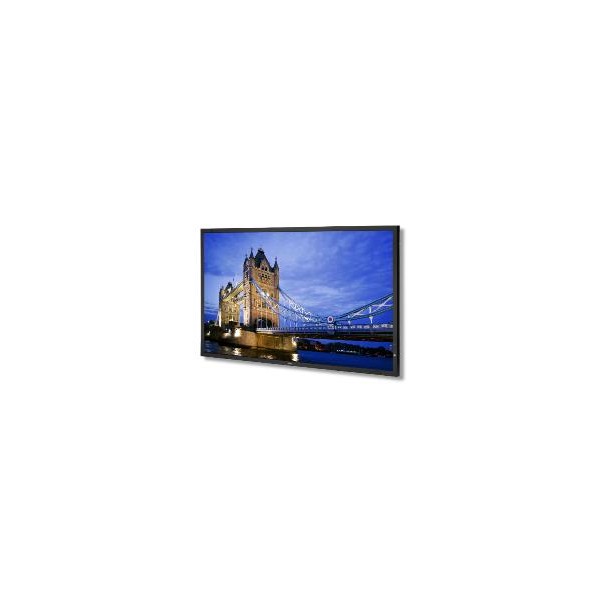

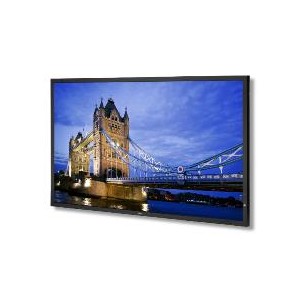

NEC X551S 55" Superslim Commercial LCD

NEC X551S 55" Superslim Commercial LCD

The superslim MultiSync®  X551S delivers

the longevity and reliability customers expect from a public display thanks to a professional public display panel and proven NEC engineering excellence. The reduced depth and light weight makes it easy to handle and integrate while the new slim option slot STv2 allows for the integration of powerful slot-in PCs and other option slot products.

More details

The superslim MultiSync®  X551S delivers the longevity and reliability customers expect from a public display thanks to a professional public display panel and proven NEC engineering excellence. The reduced depth and light weight makes it easy to handle and integrate while the new slim option slot STv2 allows for the integration of powerful slot-in PCs and other option slot products.

Ideal for a wide array of applications such as retail signage including 24/7, transport applications, conference rooms, lobby / reception installations and integration in totems and furniture.

At a glance:

Programmable Ambient Light Sensor - for reduced power consumption and eye pleasing brightness levels.
Super slim design - only 43.3 mm total depth.
DICOM support - for medical applications.
Colour Calibration - the display can be hardware colour calibrated to make sure e.g. customer's logo are displayed accurately.
Special Characteristics - Advanced fan control; Copy display settings through RS232; DICOM support; Hardware colour calibration possible; Input name adjustment; Matrix memory; OSD rotation for portrait mode; Various picture in picture options; Programmable ambient light sensor; Rapid input switching; SNMP LAN; Scheduler; Screen saver functions; TileMatrix (10 x 10); User input priority definition



DISPLAY

  • Panel Technology: S-PVA with edge LED backlights
  • Active Screen Area (W x H) [mm]: 1,209 x 680
  • Screen Sized (inch / cm): 55 / 138.8
  • Aspect Ratio: 16:9
  • Brightness (shipping) [cd/m²]: 500, (600 max)
  • Contrast Ratio (typ.): 4000:1
  • Viewing Angle [°]: 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
  • Response Time (typ.) [ms]: 8 (grey-to-grey)
  • Panel Refresh Rate [Hz]: 60

SYNCHRONISATION RANGE

  • Horizontal Frequency [kHz]: 31.5 - 91.1
  • Vertical Frequency [Hz]: 50 - 85

RESOLUTION

  • Native Resolution: 1920 x 1080 at 60 Hz
  • Supported on digital and analogue inputs (PC): 1024 x 768; 1280 x 1024; 1280 x 720; 1280 x 768; 1280 x 800; 1280 x 960; 1366 x 768; 1400 x 1050; 1600 x 1200; 1680 x 1050; 1920 x 1080; 640 x 480; 720 x 400; 720 x 576; 800 x 600
  • Supported on digital inputs (Video): 1280 x 720p (50)16:9 ; 1280 x 720p (59.94/60)16:9 ; 1920 x 1080i (50)16:9 ; 1920 x 1080i (59.94/60)16:9 ; 1920 x 1080p (23.97/24)16:9 ; 1920 x 1080p (25)16:9 ; 1920 x 1080p (29.97/30)16:9 ; 1920 x 1080p (50)16:9 ; 1920 x 1080p (59.94/60)16:9 ; 720 x 480p (59.94/60)16:9 ; 720 x 576p (50)16:9

CONNECTIVITY

  • Input Video Analogue: 1 x D-sub 15 pin; 1 x S-Video; Composite (BNC)
  • Input Video Digital: 1 x DVI-D (with HDCP); 1 x HDMI (with HDCP); 1 x DisplayPort (with HDCP)
  • Input Audio Analogue: 1 x 3,5 mm jack
  • Input Audio Digital: Display Port; 1x HDMI
  • Input Control: LAN 100Mbit; RS232
  • Output Video Digital: 1 x DVI-D (with HDCP)
  • Output Audio Analogue: 3,5mm jack
  • Output Control: RS232
  • Option Slot technology: STv2 (compatible with Intel / NEC OPS standard)
  • Remote Control: LAN with SNMP ; RS-232C (9-pin D-sub) Input and Output; Remote Control IR (internal/external (optional) sensor)

ELECTRICAL

  • Power Consumption on Mode [W]: 155 shipping; 250 (max.)
  • Power Savings Mode [W]: < 0.5 (ECO Standby); < 1
  • Power Management: VESA DPMS

ENVIRONMENTAL CONDITIONS

  • Operating Temperature [°C]: +5 to +40
  • Operating Humidity [%]: 20 to 80
  • Storage Humidity [%]: 10 to 90
  • Storage Temperature [°C]: -20 to +60

MECHANICAL

  • Dimensions (W x H x D) [mm]:Without stand: 1,254 x 726.3 x 43.3
  • Weight [kg]: Without stand: 23.9
  • Bezel Width [mm]: 21 (left and right); 21 (top and bottom)
  • VESA Mounting [mm]: 300 x 300 (FDMI); 4 holes; M6

AVAILABLE OPTIONS

  • Option Slot: Built-in PC; HD-SDI board
  • Accessories: Feet (ST-5220); Speaker (SP-RM1); Wall mount (WM32-70 L/P); Wall mount (WMS32-55 L/P)

ADDITIONAL FEATURES

  • Colour Versions: Black Front Bezel, Black Back Cabinet
  • Safety and Ergonomics: CE; TÜV GS; C-tick; Energy Star 5.1; FCC Class A; UL/C-UL or CSA; PSB; VCCI; RoHS
  • Plug and Play: VESA DDC2Bi
  • Audio: Integrated Speakers (5 W + 5 W); Optional Speakers (15 W + 15 W) Optional speakers NEC SP-RM1 (2x15W)

WARRANTY

  • 3 years warranty incl. backlight
