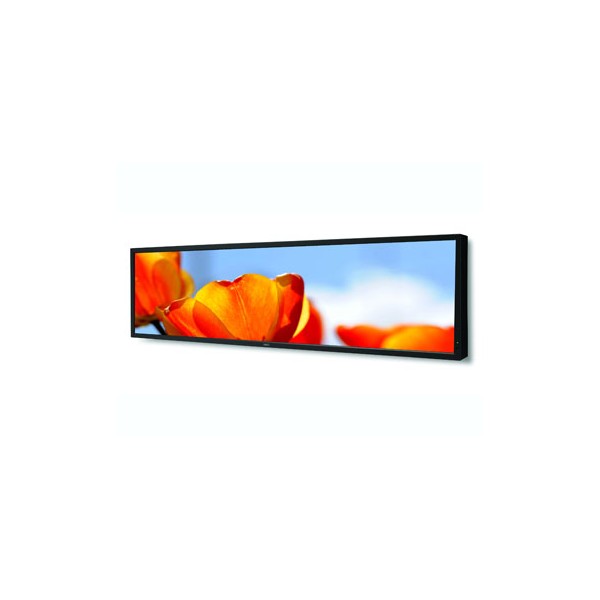

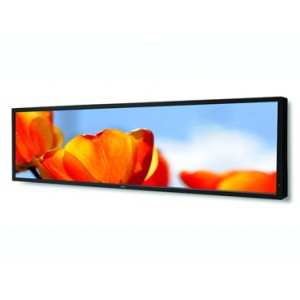

The 43" NEC X431BT, a professional-grade LCD display

in a unique bar-type shape and design, allows you to equip your digital signage applications with even the most atypical dimensions or spacing. Featuring thermal protection and a sealed panel design, this model is designed for 24/7 use in virtually any environment. When you add its video wall capabilities, eco-friendly technologies, built-in expansion slot and advanced management controls, the X431BT is ideal for use in transportation facilities, quick-service restaurants and retail outlets.

• Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology
• Built-in expansion slot allows for seamless integration of future third-party components
• TileMatrix^TM allows you to create video walls up to 10 x 10
• Real-time clock has the ability to set schedules for on/off times 24/7 and can be set to warm up 30 minutes before use for optimum colour representation
• Built-in ambient light sensor automatically adjusts the display’s brightness based on existing lighting conditions, reducing energy consumption
• CableComp+^TM compensates for analog or digital long cables or poor input signals
• Ethernet and RS-232 Control and Communication allows for ease in remote monitoring

Detailed Specifications

Panel Technology: S-PVA TFT

Active Screen Area (W x H) [mm]: 1,110 x 310

Screen Size [inch/cm]: 43 / 109.3

Pixel Pitch [mm]: 0.552

Viewing Angle [°]: 178o horizontal / 178o vertical

Screen Aspect Ratio: 16:4

Contrast Ratio (typ.): 3000:1

Brightness (typ.) [cd/m²]: 500, (700 max)

Response Time (typ.) [ms]: 8 (grey-to-grey); 16 (6 white / black; 10 black / white); 8 (tr - tf)

Colours [Mio.]: 16.77

Horizontal Frequency [kHz]: 15.625 - 15.734; 29.8 - 91.1 (analog); 29.8 - 91.1 (digital)

Vertical Frequency [Hz]: 50 - 85

Optimum Resolution: 1920 x 480 at 60 Hz

Native Resolution: 1920 x 480 at 60 Hz

Supported Resolutions: 1920 x 480; 1360 x 768; 1280 x 1024; 1280 x 768; 1024 x 768; 800 x 600; 640 x 480

Connectors: Digital: 1 x DVI-D (with HDCP); 1 x HDMI

Video Input: Analog: 1 x D-sub 15 pin; 1 x S-Video; 5 x BNC, Component, Composite (via BNC and Cinch)

Digital: 1 x DVI-D (with HDCP); 1 x HDMI ; 1 x DisplayPort

Video Output: Analog: 1 x BNC composite out; 5 x BNC for RGBHV, Component and Composite

Audio Input: (2 x Cinch (RCA); 1x HDMI ; 1 x Head-jack 3.5 mm

Audio Output: 1 x Cinch (RCA)

Option Slot: Built-in PC; CAT 5 receiver; DVI daisy chain board; HD-SDI board; Media Player

Plug & Play: VESA DDC/CI; VESA DDC2B

Safety and Ergonomics: C-tick; CCC; CE; Energy Star 5.0; FCC Class B; PSB; UL/C-UL or CSA; VCCI

Power Consumption on Mode [W]: 150

Power Management: VESA DPMS

Power Supply: 100-240 V; 0.7 A/1.2 A

Ambient Humidity (operating) [%]: 20 to 80

Ambient Temperature (operating) [°C]: +5 to +40

VESA Mounting [mm]: 700 x 200

Dimensions (W x H x D) [mm]: Without stand: 1,110 x 310 x 200

Supported TV Standards (no tuner): NTSC; PAL; SECAM

Video Modes (no tuner): 480i; 480p; 576i; 576p; 1920 x 480; 2 x720p (50 and 60 Hz); 2 x 1080i (50 and 60 Hz); 2 x 1080p (50 and 60 Hz)

Remote Control: D-sub 15 and DVI-D (DDC/CI); Ethernet; RS-232C (9-pin D-sub) Input and Output; Remote Control IR

Shipping Content: Signal Cable VGA - VGA CD-ROM (User Guides/Manuals); Display; Power Cable; Remote Control (IR); Signal Cable DisplayPort; User Manual

Warranty: 3 years warranty incl. backlight
