Extreme impact, minimal investment

Discover a more affordable way to take your LCD video walls to new levels of impact with NEC’s Value Series range. With an ultra-narrow bezel, the distance between two neighboring screens can be as little as 7.3mm – nearly five times better than NEC’s previously revolutionary 33mm P Series displays.

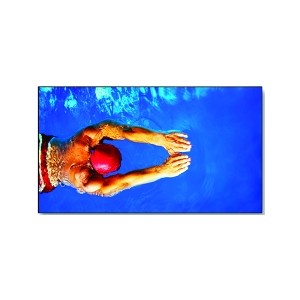

This 46-inch display is ideal for digital signage and broadcast applications, and can creating a total surface area of approximately 60 square meters in a video wall matrix of up to 10x10 (100 displays). You’ll achieve a homogenous picture across the matrix with a barely discernible gap between displays.

Value Series 46-inch Ultra Narrow Bezel at a glance

• Professional-grade LCD panel and components with Simple Network Management Protocol (SNMP)
• 1366 x 768 WXGA native resolution in true 16:9 aspect ratio, maximum brightness of 450 cd/m2 and typical contrast ratio of 3000:1
• Ground-breaking ultra-narrow bezel of 7.3 millimetres (screen-to-screen)
• TileMatrixTM technology (up to 100 displays)
• Built-in expansion slot
• Optional Display Wall Calibrator
• Network Control and Communication
• Ambient Light Sensor, Scheduler and Built-in ECO Mode
• Intelligent Power Management Features for reduced total cost of ownership (TCO)
• User controllable back up fans with 2 speeds

DISPLAY:

Panel Technology: S-PVA TFT

Active Screen Area (W x H) [mm]: 1,018.4 x 572.5

Screen Size [inch/cm]: 46 / 117

Aspect Ratio: 16:9

Pixel Pitch [mm]: 0.746 x 0.746

Brightness (typ.) [cd/m²]: 450

Viewing Angle [°]: 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)

Response Time (typ.) [ms]: 8 (grey-to-grey); 16 (6 white / black; 10 black / white); 8 (tr - tf)

Colours [Mio.]: 16.77

Contrast Ratio (typ.): 3000:1

SYNCHRONISATION RATE:

Horizontal Frequency [kHz]: 31.5 - 91.1 (analog and digital)

Vertical Frequency [Hz]: 50 - 85

RESOLUTION:

Native Resolution: 1366 x 768 at 60 Hz

Supported: 1024 x 768; 1280 x 1024; 1280 x 768; 1366 x 768; 1440 x 1050; 1600 x 1200; 1680 x 1050; 1920 x 1080; 640 x 480; 720 x 400; 800 x 600; 832 x 624

RESOLUTION:

Optimum Resolution: 1360 x 768 at 60 Hz

CONNECTIVITY:

Video Input: Analog: 1 x D-sub 15 pin; 1 x S-Video; 5 x BNC, Component, Composite (via BNC and Cinch)

Digital: 1 x DVI-D (with HDCP); 1 x HDMI 1.3; 1 x DisplayPort

Video Output: Analog: 5 x BNC, Composite (via BNC)

Audio Input: (2 x Cinch (RCA); 1 x Head-jack 3.5 mm

Audio Output: 1 x Cinch (RCA)

Remote Control: RS-232C (9-pin D-sub) Input and Output; D-sub 15 and DVI-D (DDC/CI); Remote Control IR

TV AND VIDEO:

Supported TV Standards (no tuner): NTSC; PAL; SECAM

Video Modes (no tuner): 480i; 480p; 576i; 576p; 2 x720p (50 and 60 Hz); 2 x 1080i (50 and 60 Hz); 2 x 1080p (50 and 60 Hz)

ELECTRICAL:

Power Management: VESA DPMS

Power Requirements: 100-120 V/220-240 V; 3.6 A/1.45 A; internal power supply

ENVIRONMENTAL CONDITIONS:

Operating Temperature [°C]: +5 to +40

Operating Humidity [%]: 20 to 80

MECHANICAL:

Dimensions (W x H x D) [mm]: With stand: 1,025.7 x 623.6 x 351; Without stand: 1,025.7 x 579.8 x 128.1

Bezel Width [mm]: 2.4 bottom/right; (Content to content: 2.7 bottom/right; 4.6 top/left)

VESA Mounting [mm]: 300 x 300 (FDMI); 4 holes

Bezel Width [mm]: 4.3 top/left

AVAILABLE OPTIONS:

Option Slot: IPTV Tuner; Built-in PC; CAT 5 receiver; DVI daisy chain board; HD-SDI board; Media Player

Stand: Optional

Remote Control: Optional

ADDITIONAL FEATURES:

Colour Versions: Black Front Bezel, Black Back Cabinet

Safety and Ergonomics: CE; TÜV GS; C-tick; Energy Star 5.0; FCC Class B; UL/C-UL or CSA; CCC; PSB; VCCI; RoHS

Plug and Play: VESA DDC2Bi

Audio    Amplifier: 2x 15 Watt; no optional speakers

Warranty: 3 years warranty incl. backlight
